Rear Seat Cushion Lock Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat cushion. (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
  2. Move the remover tool in the direction of the arrow (1) shown in the figure and disengage the tab.

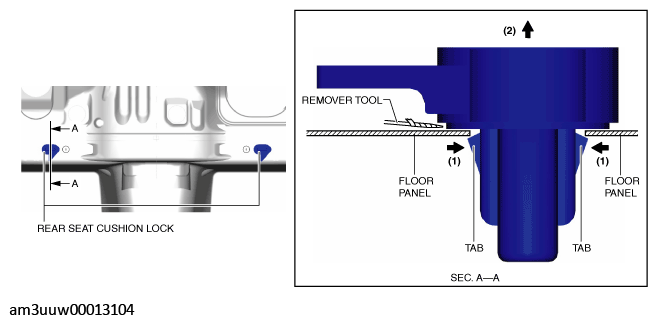

    Fig 1: Removing Rear Seat Cushion Lock
    G11467588Courtesy of MAZDA MOTORS CORP.
  3. Remove the rear seat cushion lock in the direction of the arrow (2) shown in the figure.
  4. Install in the reverse order of removal.
