Sedan (4SD)

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fold the rear seat back.
  2. Partially peal back the rear seat back trim and remove the bolts.

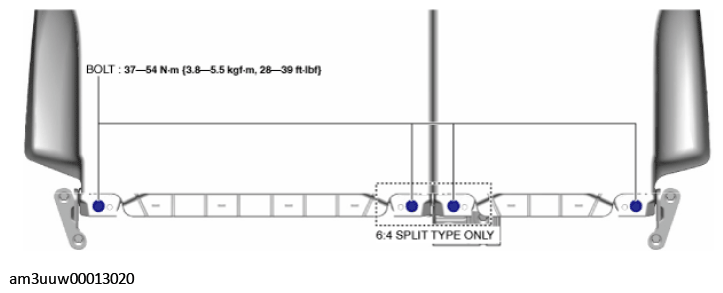

    Fig 1: Rear Seat Back With Bolts
    G11467562Courtesy of MAZDA MOTORS CORP.
  3. Move the rear seat back to the position where the T-studs of the rear seat back frame can be removed from the rear seat hinge.

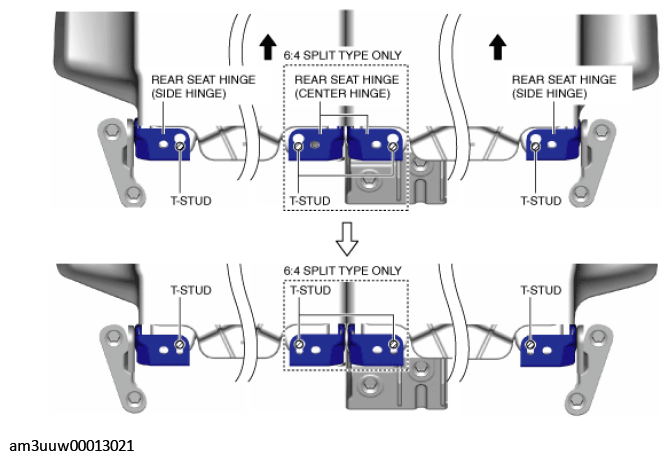

    Fig 2: Removing T-Studs Of Rear Seat Back Frame
    G11467563Courtesy of MAZDA MOTORS CORP.
  4. Move the rear seat hinge to the direction of the arrows shown in the figure and set the rear seat hinge away from the T-studs of the rear seat back frame.

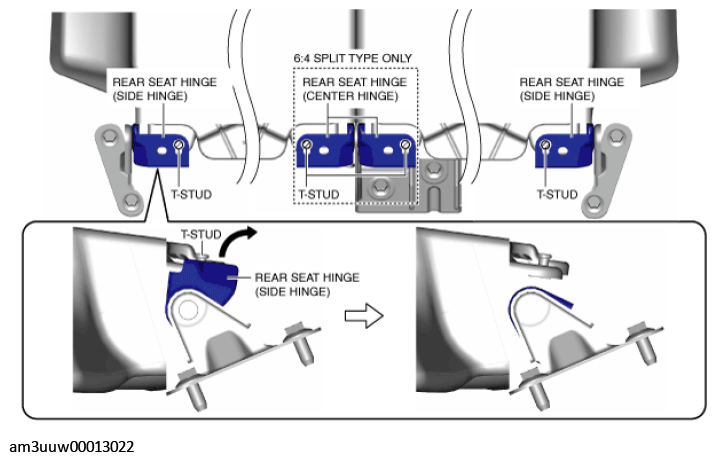

    Fig 3: Moving Rear Seat Hinge
    G11467564Courtesy of MAZDA MOTORS CORP.
  5. Set the rear seat hinge away from all the T-studs of the rear seat back frame.
  6. Remove the rear seat back.
  7. Install in the reverse order of removal.
