Hatchback (5HB)

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. To remove the rear seat back (LH), remove the following part:
    1. Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
    2. Rear center seat belt anchor (See REAR CENTER SEAT BELT REMOVAL/INSTALLATION .)
  2. Fold the rear seat back.
  3. Partially peal back the rear seat back trim and remove the bolts.

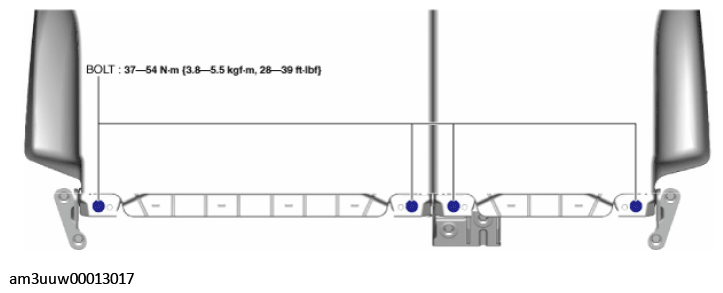

    Fig 1: Removing Rear Center Seat Belt Anchor And Rear Seat Cushion
    G11467565Courtesy of MAZDA MOTORS CORP.
  4. Move the rear seat back to the position where the T-studs of the rear seat back frame can be removed from the rear seat hinge.

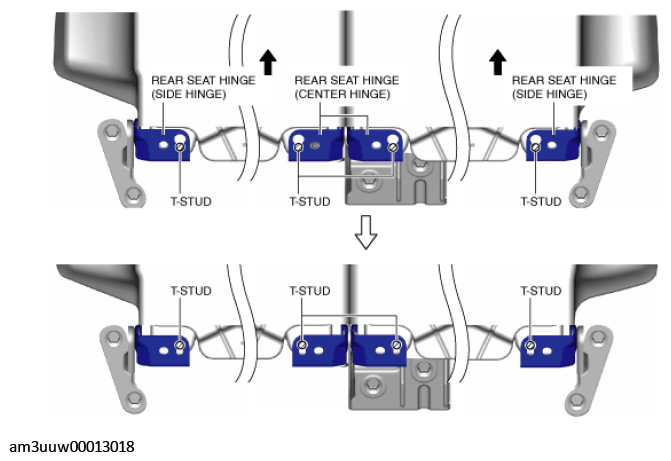

    Fig 2: Removing Rear Seat Back Frame From Rear Seat Hinge
    G11467566Courtesy of MAZDA MOTORS CORP.
  5. Move the rear seat hinge to the direction of the arrows shown in the figure and set the rear seat hinge away from the T-studs of the rear seat back frame.

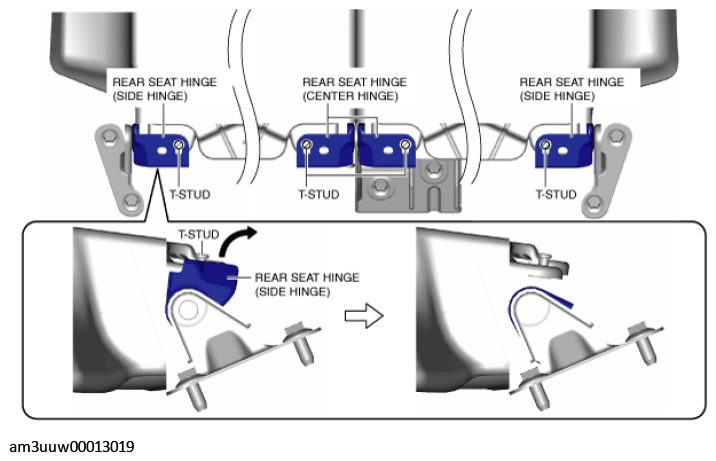

    Fig 3: Moving Rear Seat Hinge
    G11467567Courtesy of MAZDA MOTORS CORP.
  6. Set the rear seat hinge away from all the T-studs of the rear seat back frame.
  7. Remove the rear seat back.
  8. Install in the reverse order of removal.
