Without power seat system

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • The seat back folds forward when the recliner knob is operated. Be careful when operating the recliner lever.
  1. Switch the ignition off (LOCK).
  2. Disconnect the negative battery cable and wait for 1 min. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  3. Move the flathead screwdriver wrapped in protective tape in the direction of the arrow (1) shown in the figure and disengage tab A.
    Fig 1: Moving Flathead Screwdriver Wrapped In Protective Tape
    G11426428Courtesy of MAZDA MOTORS CORP.
  4. Move the flathead screwdriver wrapped in protective tape in the direction of the arrow (2) shown in the figure and disengage tab B.
    Fig 2: Moving Flathead Screwdriver Wrapped In Protective Tape
    G09076842Courtesy of MAZDA MOTORS CORP.
  5. Remove the recliner lever knob in the direction of the arrow (3) shown in the figure.
    Fig 3: Removing Recliner Lever Knob
    G09076843Courtesy of MAZDA MOTORS CORP.
  6. Affix the protective tape to the position shown in the figure.

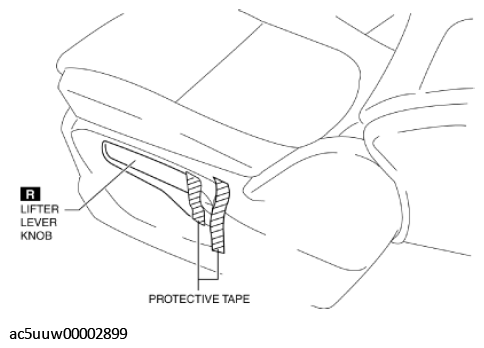

    Fig 4: Protective Tape Location
    G11467527Courtesy of MAZDA MOTORS CORP.
  7. Using a wood slab, tap the end of the lifter lever knob with the plastic hammer and remove it in the direction of the arrow (4).
    Fig 5: Tapping End Of Lifter Lever Knob Using Wood Slab
    G11426432Courtesy of MAZDA MOTORS CORP.
  8. Remove clip C from the front seat cushion frame.
    Fig 6: Removing Clip C From Front Seat Cushion Frame
    G09076846Courtesy of MAZDA MOTORS CORP.
  9. Pull up the front seat side cover in the direction of the arrow (5) shown in the figure and set hook D aside.
  10. Pull the front seat side cover in the direction of the arrow (6) shown in the figure and disengage the tabs E and F, and the pin.
    Fig 7: Pulling Front Seat Side Cover
    G11426434Courtesy of MAZDA MOTORS CORP.
  11. Pull the front seat side cover in the direction of the arrow (7) shown in the figure and set hook H aside.
    Fig 8: Pulling Front Seat Side Cover
    G09076848Courtesy of MAZDA MOTORS CORP.
  12. Pull the front seat side cover in the direction of the arrow (8) shown in the figure and set hook I aside.
  13. Remove the front seat side cover.
  14. Install in the reverse order of removal.
  15. When the passenger's seat is removed, perform the DTC inspection for the SAS control module using the M-MDS and verify that no DTCs are displayed. (See DTC INSPECTION [SAS CONTROL MODULE (TWO-STEP DEPLOYMENT CONTROL SYSTEM)] .)
    NOTE:
  16. When the passenger's seat is replaced with a new one, perform the occupant classification sensor calibration using the M-MDS. (See OCCUPANT CLASSIFICATION SENSOR CALIBRATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .)
