Sedan (4SD)

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

When removing the top tether anchor from the vehicle or putting it back in, it can be performed easier by removing the head restraint

Open the cover.

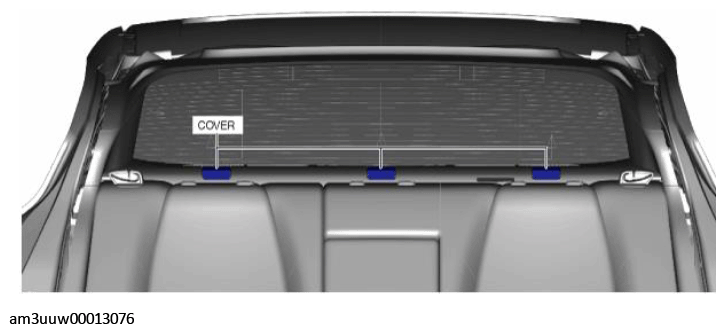

Fig 1: Removing Top Tether Anchor From Vehicle
Courtesy of MAZDA MOTORS CORP.
Remove the bolts.

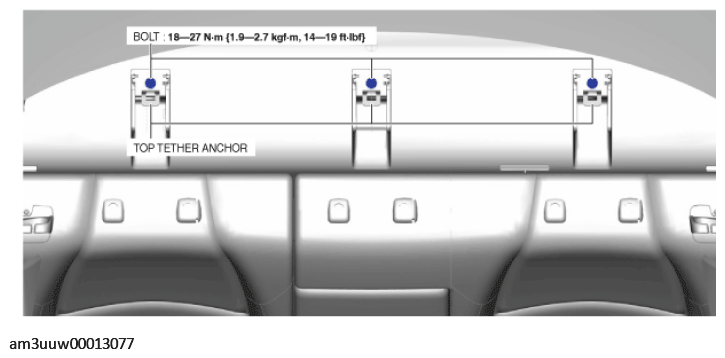

Fig 2: Removing Top Tether Anchor Bolts With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Remove the top tether anchors while pulling the top tether anchor hooks out of the body panel.

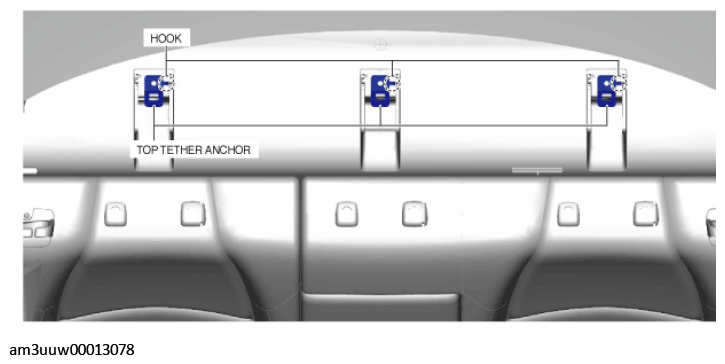

Fig 3: Removing Top Tether Anchors
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
