ISOFIX Anchor

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The ISOFIX anchor shown in figure A is integrated with the rear seat hinge (center hinge).

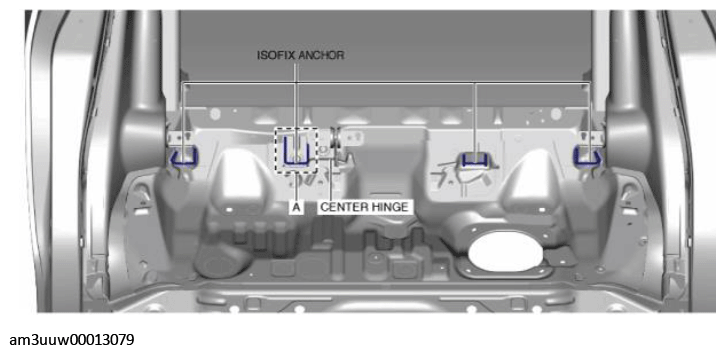

Fig 1: Isofix Anchor

Courtesy of MAZDA MOTORS CORP.

ISOFIX anchors other than shown in figure A are integrated with the body.
For the ISOFIX anchor removal/installation, refer to the rear seat hinge removal/installation. (See REAR SEAT HINGE REMOVAL/INSTALLATION .)
