Active Air Shutter Location Index

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

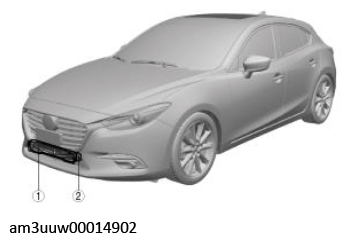

Fig 1: Active Air Shutter Location

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Active air shutter (See ACTIVE AIR SHUTTER REMOVAL/INSTALLATION .) (See ACTIVE AIR SHUTTER INSPECTION .)
2	Active air shutter cover (See ACTIVE AIR SHUTTER REMOVAL/INSTALLATION .)
