No. 7 Engine Oil Warning Light Illuminated/Message Related To Engine Hydraulic Pressure Malfunction Indicated In Display: Notes

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

NO. 7 ENGINE OIL WARNING LIGHT ILLUMINATED/MESSAGE RELATED TO ENGINE HYDRAULIC PRESSURE MALFUNCTION INDICATED IN DISPLAY (SKYACTIV-G 2.0, SKYACTIV-G 2.5) DESCRIPTION AND POSSIBLE CAUSE

7	ENGINE OIL WARNING LIGHT ILLUMINATED/MESSAGE RELATED TO ENGINE HYDRAULIC PRESSURE MALFUNCTION INDICATED IN DISPLAY
DESCRIPTION	Engine oil warning light illuminates. Message related to engine hydraulic pressure malfunction indicated in display.

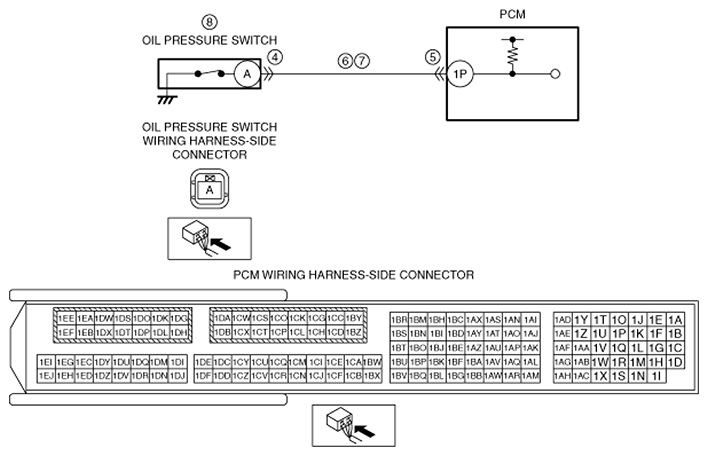

POSSIBLE CAUSE	Improper engine oil level Engine oil leakage Oil pressure switch connector or terminals malfunction PCM connector or terminals malfunction Short to ground in wiring harness between oil pressure switch terminal A and PCM terminal 1P Open circuit in wiring harness between oil pressure switch terminal A and PCM terminal 1P Oil pressure switch malfunction Oil pump malfunction Instrument cluster malfunction PCM malfunction
