Vehicles with full-auto air conditioner

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

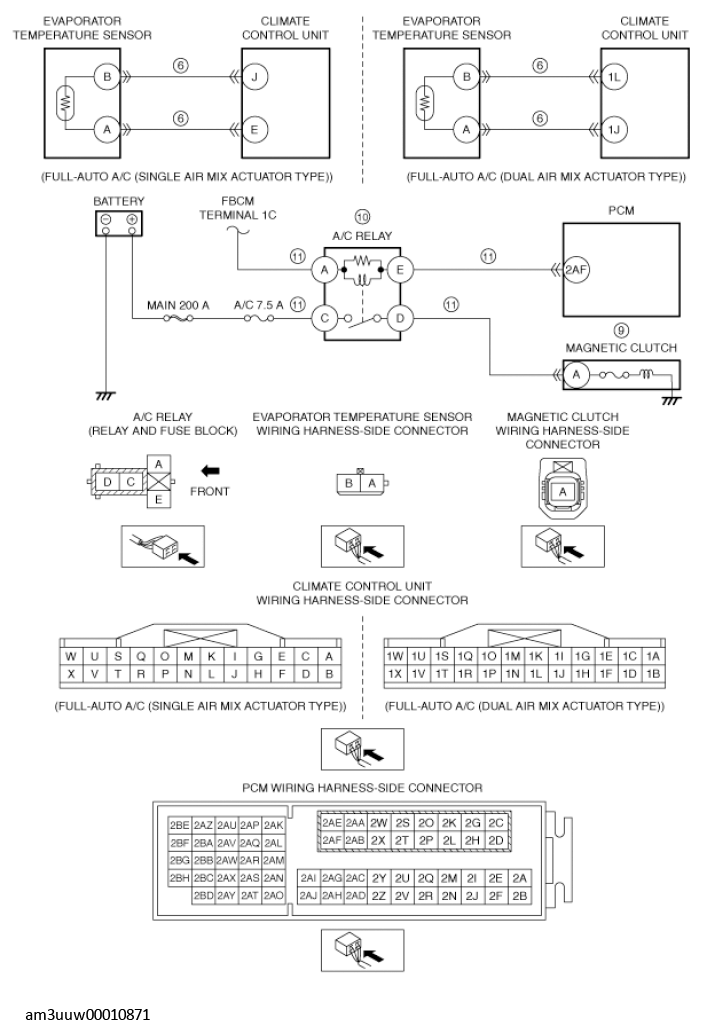

Fig 1: System Wiring Diagram - Vehicles With Full-Auto Air Conditioner
G11550469Courtesy of MAZDA MOTORS CORP.
CAUTION:
  • Verify the malfunction symptom according to not only the PID value but also the symptom troubleshooting.
