Stator Coil

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Verify that the continuity is as indicated in the chart.

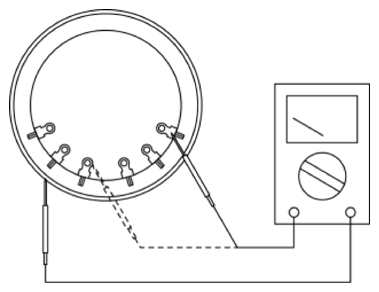

Fig 1: Checking Stator Coil Continuity
Courtesy of MAZDA MOTORS CORP.

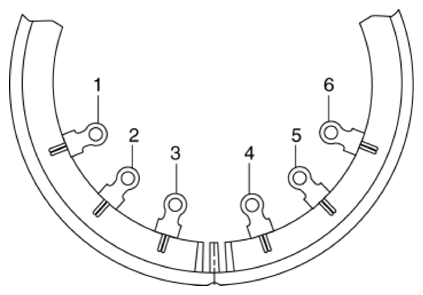

Fig 2: Stator Coil Terminal Continuity Chart
Courtesy of MAZDA MOTORS CORP.
- If there is any malfunction, replace the stator.
Verify that there is no continuity between the stator coil leads and core using a tester.

Fig 3: Checking Continuity Between Stator Coil Leads And Core Using Tester
Courtesy of MAZDA MOTORS CORP.
- If there is continuity, replace the stator coil.
