Wheel Bearing Excessive Play Inspection

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Perform the following procedure for vehicles with the electric parking brake.
    1. Switch the ignition ON (engine off).
    2. Release the electric parking brake.
    3. Switch the ignition off.
    4. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION .)
  3. Disconnect the electric parking brake motor gear unit connector. (With electric parking brake) (See ELECTRIC PARKING BRAKE MOTOR GEAR UNIT REMOVAL/INSTALLATION .)
  4. Remove the brake caliper component and disc plate. (See WHEEL HUB COMPONENT REMOVAL/INSTALLATION .)

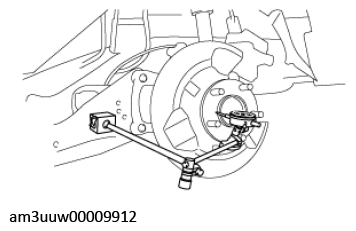

  5. Install the magnetic base and dial gauge as shown in the figure and measure the wheel bearing axial excessive play.
Fig 1: Measuring Wheel Bearing Axial Excessive Play
G11450510Courtesy of MAZDA MOTORS CORP.
