Oil Pump Driven Sprocket Removal Note (SKYACTIV-G 2.0)

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

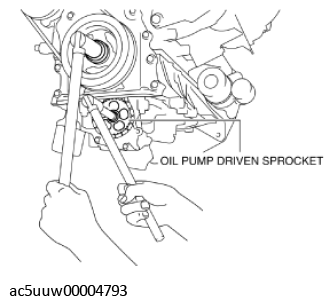

While locking the oil pump against rotation as shown in the figure, remove the oil pump driven sprocket installation bolt.

Fig 1: Removing Oil Pump Driven Sprocket
Courtesy of MAZDA MOTORS CORP.
Remove the oil pump driven sprocket.
