Upper Radiator Hose Removal Note

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Remove the bracket shown in the figure from the throttle body and set the upper radiator hose aside.

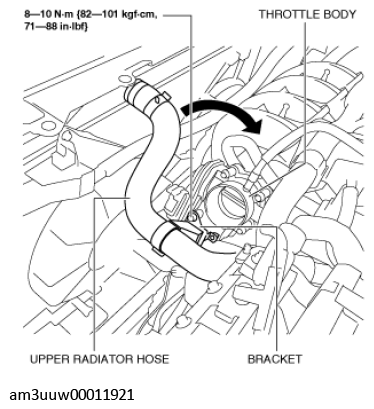

Fig 1: Removing Upper Radiator Hose Bracket

Courtesy of MAZDA MOTORS CORP.
