Cooling Fan Component Installation Note

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

There are projections on the cooling fan component.

World manufacturer identification "JM1"

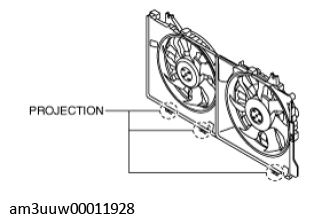

Fig 1: Locating Projections On Cooling Fan Component - JM1

Courtesy of MAZDA MOTORS CORP.

World manufacturer identification "3MZ"

Fig 2: Locating Projections On Cooling Fan Component - 3MZ

Courtesy of MAZDA MOTORS CORP.

Insert the projections of the cooling fan component to the installation locations on the radiator side shown in the figure.

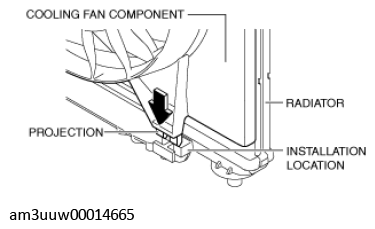

Fig 3: Inserting Projections Of Cooling Fan Component To Installation Locations On Radiator Side
Courtesy of MAZDA MOTORS CORP.
Tighten the cooling fan component installation bolts.
Tightening torque

World manufacturer identification "JM1": 5.9-7.8 N-m {61-79 kgf-cm, 53-69 in lbf}

World manufacturer identification "3MZ": 8-10 N-m {82-101 kgf-cm, 71-88 in lbf}
