Cooling Fan Motor Inspection

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Part Inspection

Verify that the battery is fully charged. (See BATTERY INSPECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
Disconnect the cooling fan motor connector (2 terminals).
Install a tester and battery to the cooling fan motor connector (2 terminals) as shown in the figure.
World manufacturer identification JM1

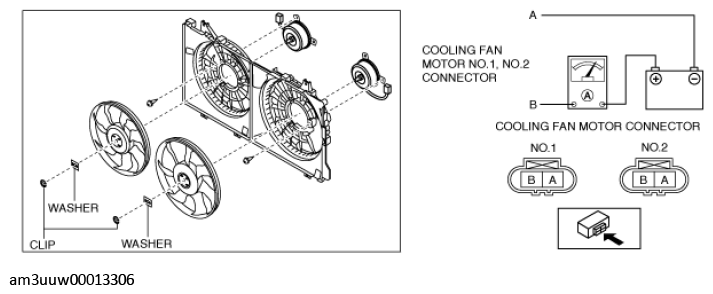

Fig 1: Installing Tester And Battery To Cooling Fan Motor Connector (2 Terminals) - JM1
Courtesy of MAZDA MOTORS CORP.

World manufacturer identification "3MZ"

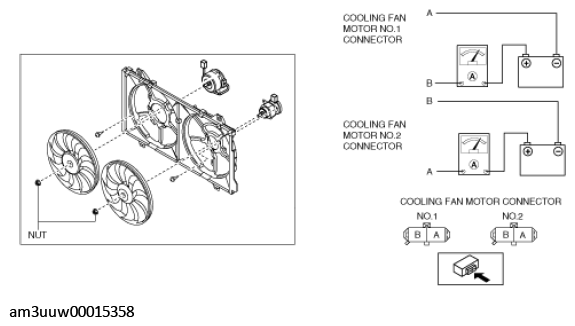

Fig 2: Installing Tester And Battery To Cooling Fan Motor Connector (2 Terminals) - 3MZ
Courtesy of MAZDA MOTORS CORP.
Verify that each cooling fan motor operates smoothly at the standard current.
- If there is any malfunction, replace the applicable part.
  Cooling fan motor standard current [World manufacturer identification "JM1"]

  No. 1: 4.3-8.3 A [12 V]

  No. 2: 4.1-8.1 A [12 V]

  Cooling fan motor standard current [World manufacturer identification "3MZ"]

  No. 1: 3.3-7.3 A [12 V]

  No. 2: 7.8-11.8 A [12 V]
