Coolant Reserve Tank Removal/Installation: Notes

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Remove in the order indicated in the table.
Install in the reverse order of removal.

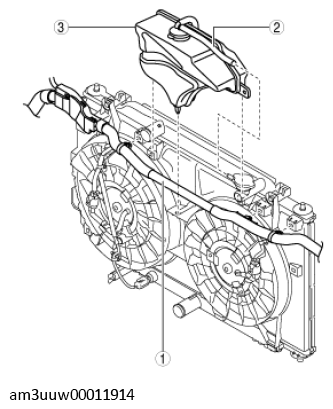

Fig 1: Removing/Installing Coolant Reserve Tank Parts

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Wiring harness
2	Hose
3	Coolant reserve tank (See Coolant Reserve Tank Removal Note .)
