DTC B1C1A-11; B1C1A-13; B1C1B-11; B1C1B-13: [Climate Control Unit (Full-Auto Air Conditioner)]: Notes
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
DTC B1C1A:11, B1C1A:13, B1C1B:11, B1C1B:13 (CLIMATE CONTROL UNIT - FULL-AUTO AIR CONDITIONER) DETECTION CONDITION AND POSSIBLE CAUSE
| System malfunction location |
- B1C1A:11: Driver-side air mix actuator (potentiometer) circuit short to ground
- B1C1A:13: Driver-side air mix actuator (potentiometer) circuit open
- B1C1B:11: Passenger-side air mix actuator (potentiometer) circuit short to ground
- B1C1B:13: Passenger-side air mix actuator (potentiometer) circuit open
|
| Detection condition |
- Malfunction in wiring harness between air mix actuator and climate control unit
|
| Fail-safe function |
Malfunction determined when ignition switched ON
- Air mix actuator drive signal is stopped right when the malfunction is determined.
Malfunction already exists when ignition switched ON
- Control based on ambient temperature.
|
| Possible cause |
- Connector or terminal malfunction
- Air mix actuator malfunction

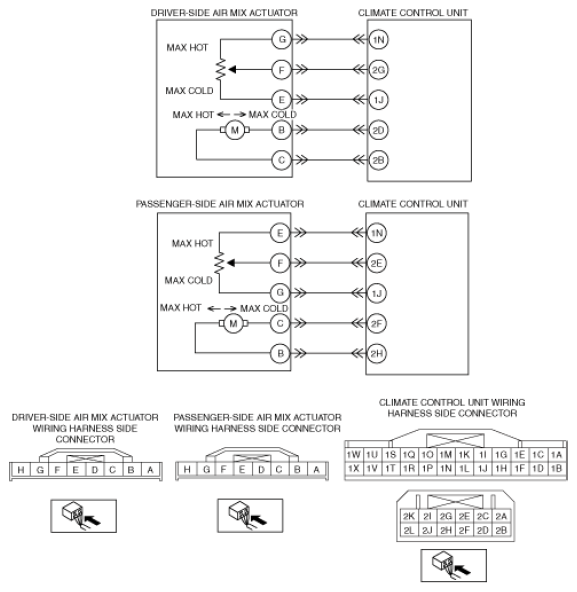

- Open circuit in wiring harness between the following terminals: Driver-side
- Climate control unit terminal 1N-Air mix actuator terminal G
- Climate control unit terminal 2G-Air mix actuator terminal F
- Climate control unit terminal 1J-Air mix actuator terminal E
Passenger-side
- Climate control unit terminal 1N-Air mix actuator terminal E
- Climate control unit terminal 2E-Air mix actuator terminal F
- Climate control unit terminal 1J-Air mix actuator terminal G
- Short to ground in wiring harness between the following terminals: Driver-side
- Climate control unit terminal 1N-Air mix actuator terminal G
- Climate control unit terminal 2G-Air mix actuator terminal F
Passenger-side
- Climate control unit terminal 1N-Air mix actuator terminal E
- Climate control unit terminal 2E-Air mix actuator terminal F
- Climate control unit malfunction
|
|
|
