Indicator Removal/Installation (Without Electric Parking Brake): Notes

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the following parts:
1. Upper panel (See UPPER PANEL REMOVAL .) (See UPPER PANEL INSTALLATION .)
2. Selector lever knob (See Selector Lever Removal/Installation .)
3. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.
Install in the reverse order of removal.

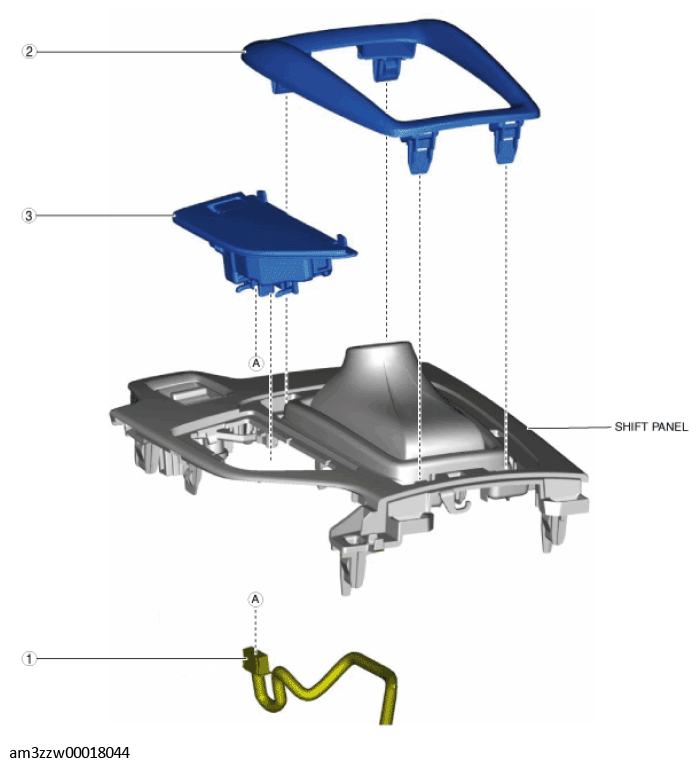

Fig 1: Removing Connector, Indicator Panel And Indicator

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Connector
2	Indicator panel
3	Indicator (See Indicator Removal Note (Without Electric Parking Brake) .)
