Manual Transaxle Shift Mechanism Location Index

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

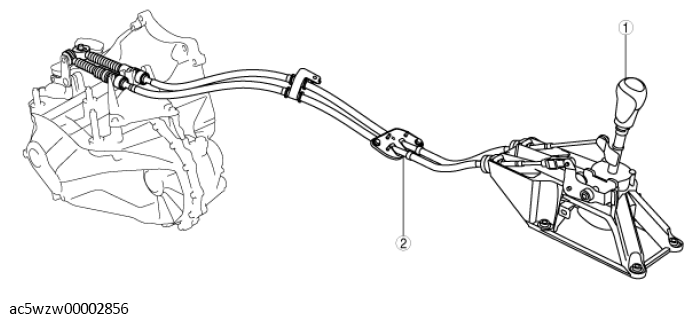

Fig 1: Manual Transaxle Shift Mechanism Components Location

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Shift lever (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
2	Control cable (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
