Without Bose®

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • If the procedure is performed while holding the rear door speaker cone, it could deform the cone causing a malfunction. Therefore, perform the procedure while holding any part other than the cone.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the rear door trim. (See REAR DOOR TRIM REMOVAL/INSTALLATION .)
  3. Disconnect the connector.
    Fig 1: Locating Rear Door Speaker Connector
    G11448811Courtesy of MAZDA MOTORS CORP.
  4. Remove the bolts.
  5. Pull the rear door speaker in the direction of the arrow shown in the figure and remove it while detaching the pins.

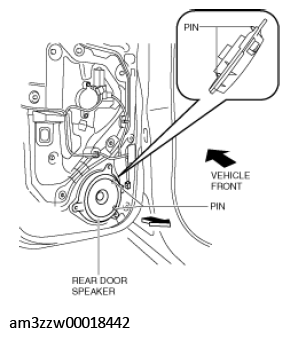

    Fig 2: Pulling Rear Door Speaker
    G11448812Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
