Home >> Mazda >> 2017 >> CX-5 Grand Select, FWD >> Repair and Diagnosis >> External Pages >> Different car >> Section 121 (Entertainment System) >> Rear Door Speaker Removal/Installation >> With Bose®

With Bose®

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the rear door trim. (See REAR DOOR TRIM REMOVAL/INSTALLATION .)
  3. Disconnect the connector.
    Fig 1: Rear Door Speaker Connector Location
    G11448813Courtesy of MAZDA MOTORS CORP.
  4. Remove the bolts.
  5. Pull the rear door speaker in the direction of the arrow shown in the figure and remove it while detaching the pins.

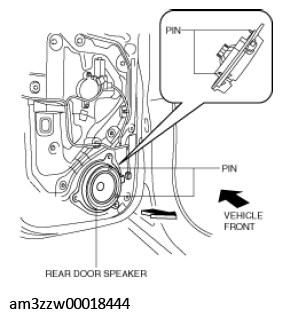

    Fig 2: Pull Rear Door Speaker
    G11448814Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
