Global Positioning System (GPS) Antenna Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Center speaker grille (See SPEAKER GRILLE REMOVAL/INSTALLATION .)
    2. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    3. Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    4. Center display (See CENTER DISPLAY REMOVAL/INSTALLATION .)
  3. While pressing the clip tabs in the direction of the arrows (1) shown in the figure, press the wiring harness in the direction of the arrow (2) to detach the clip tabs from the dashboard.

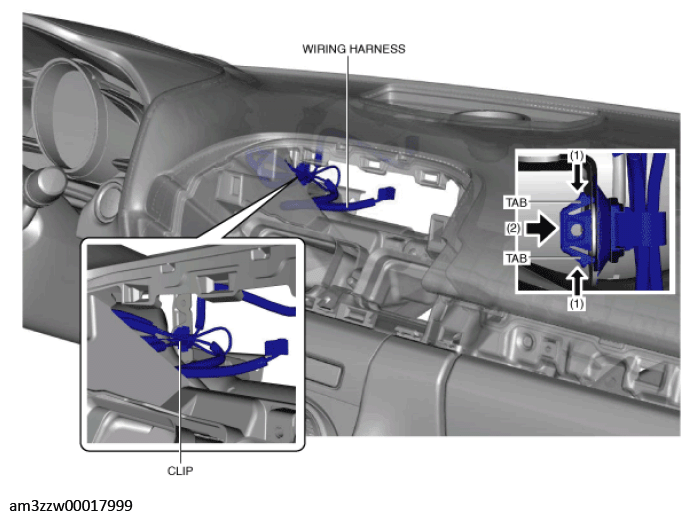

    Fig 1: Pressing Wiring Harness And Clip Tabs
    G11448804Courtesy of MAZDA MOTORS CORP.
  4. Remove the screw.

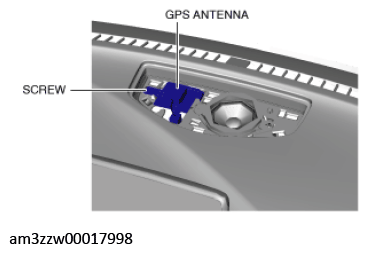

    Fig 2: GPS Antenna Screw Location
    G11448805Courtesy of MAZDA MOTORS CORP.
  5. Remove the GPS antenna.
  6. Install in the reverse order of removal.
