With Electric Parking Brake

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the upper panel. (See UPPER PANEL REMOVAL .) (See UPPER PANEL INSTALLATION .)
  3. While pressing the tabs of the clip in the direction of the arrow (1) shown in the figure, press it in the direction of the arrow (2) to detach the upper panel tabs from the commander switch.

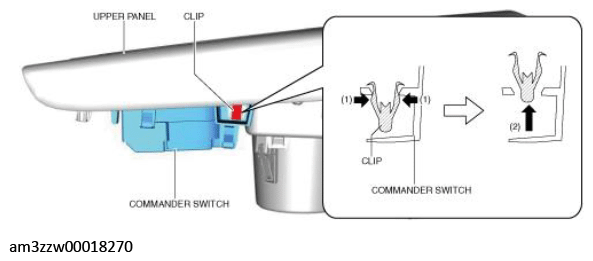

    Fig 1: Pressing Tabs Of Clip
    G11448774Courtesy of MAZDA MOTORS CORP.
  4. While pressing the tabs of the upper panel in the direction of the arrows (1) shown in the figure, press the upper panel in the direction of the arrow (2) to detach the tabs of the upper panel from the commander switch.

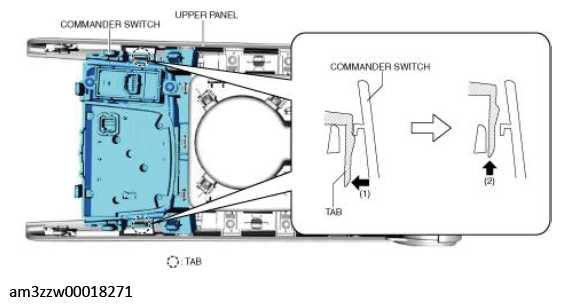

    Fig 2: Pressing Tabs Of Upper Panel
    G11448775Courtesy of MAZDA MOTORS CORP.
  5. While pressing the tabs of the upper panel in the direction of the arrows (1) shown in the figure, press the upper panel in the direction of the arrow (2) to detach the tabs of the upper panel from the commander switch.

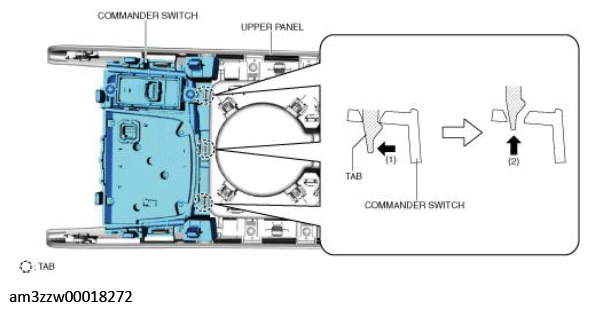

    Fig 3: Pressing Tabs Of Upper Panel
    G11448776Courtesy of MAZDA MOTORS CORP.
  6. Remove the commander switch.
  7. Install in the reverse order of removal.
