Auxiliary Jack/USB Port Removal/Installation: Rear
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
- Remove the console-up. (See REAR CONSOLE REMOVAL/INSTALLATION .)

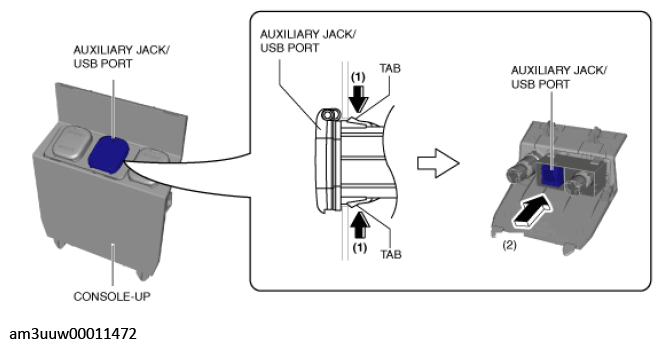

- While pressing the auxiliary jack/USB port tabs in the direction of the arrows (1) shown in the figure, press the auxiliary jack/USB port in the direction of the arrow (2) to detach the auxiliary jack/USB port tabs from the console-up.
- Remove the auxiliary jack/USB port.
- Install in the reverse order of removal.
