AudioPilot® 2 MICROPHONE REMOVAL/INSTALLATION

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

AudioPilot® 2 is a registered trademark of Bose® Corporation.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Disconnect the connector.

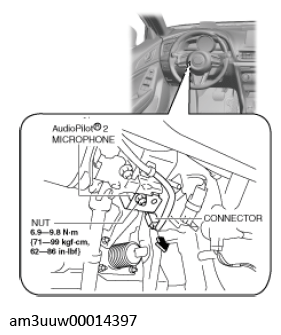

Fig 1: Locating Connector On AudioPilot®2 Microphone
Courtesy of MAZDA MOTORS CORP.
Remove the nut.
Remove the AudioPilot® 2 microphone.
Install in the reverse order of removal.
