With Electric Parking Brake

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Open the console lid.
  3. Open the shutter and remove the cushion sheet.
    Fig 1: Cushion Sheet Location
    G11449427Courtesy of MAZDA MOTORS CORP.
  4. Remove the screw.
    Fig 2: Upper Panel Screw Location
    G11449428Courtesy of MAZDA MOTORS CORP.
  5. Pull the upper panel in the order of the arrows (1), (2), and (3) as shown in the figure and remove it while detaching the clips A, hooks, and clips B.

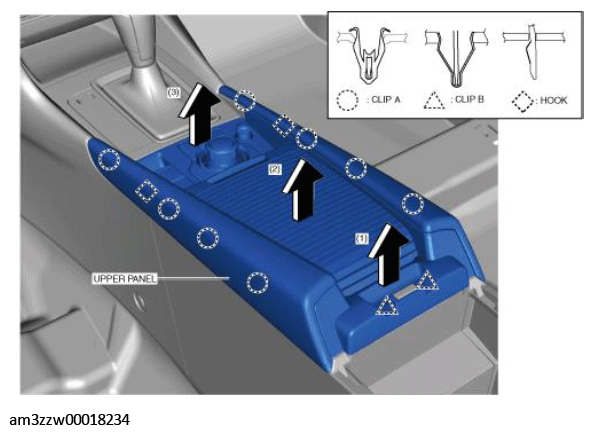

    Fig 3: Pulling Upper Panel
    G11449429Courtesy of MAZDA MOTORS CORP.
  6. Disconnect the electric parking brake switch connector.
  7. Disconnect the commander switch connector.
    NOTE:
