Without Electric Parking Brake

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

When the clips B are removed at the front of the upper panel, the clips for the rear of the shift panel may be disengaged.
When installing the new upper panel, first install the commander switch to the upper panel (with commander switch). (See COMMANDER SWITCH REMOVAL/INSTALLATION .)

Verify that the clips on the end of the shift panel are disengaged from the front console.
CAUTION:
- If the upper panel is installed with the upper panel hooks not inserted into the grooves of the console, the hooks could come out or be bent inward and damaged. Verify that the hooks are inserted into the grooves and then install.
Connect the commander switch connector (with commander switch).
Press the upper panel in the order of the arrows (1), (2), and (3) as shown in the figure, and install the hooks, clips A and clips B.

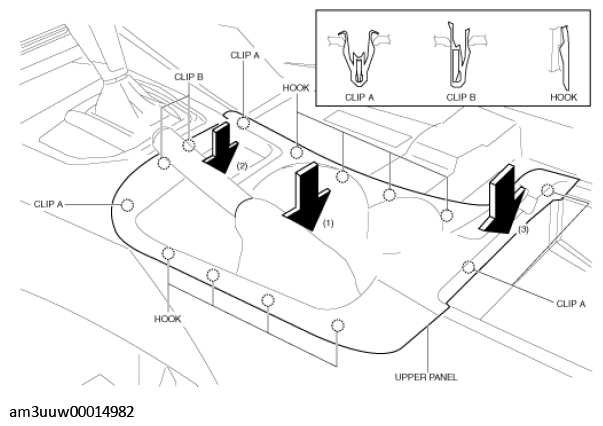

Fig 1: Pressing Upper Panel
Courtesy of MAZDA MOTORS CORP.
Fasten the fastener and button.

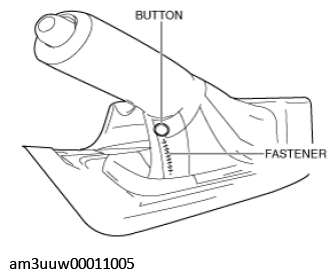

Fig 2: Upper Panel Fastener And Button Location
Courtesy of MAZDA MOTORS CORP.
Close the console lid.
Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
