With Electric Parking Brake

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

When installing the new upper panel, first install the following parts to the upper panel:
- Electric parking brake switch (See ELECTRIC PARKING BRAKE SWITCH REMOVAL/INSTALLATION .)
- Commander switch (See COMMANDER SWITCH REMOVAL/INSTALLATION .)

Connect the commander switch connector.
Connect the electric parking brake switch connector.
Press the upper panel in the order of the arrows (1), (2), and (3) as shown in the figure, and install the hooks, clips A and clips B.

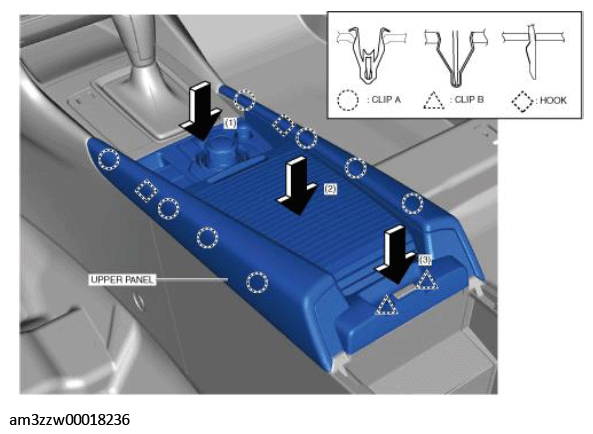

Fig 1: Pressing Upper Panel
Courtesy of MAZDA MOTORS CORP.
Install the screw.

Fig 2: Locating Upper Panel Screw
Courtesy of MAZDA MOTORS CORP.
Install the cushion sheet and close the shutter.

Fig 3: Installing Cushion Sheet
Courtesy of MAZDA MOTORS CORP.
Close the console lid.
Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
