Trunk Side Trim Installation Note
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

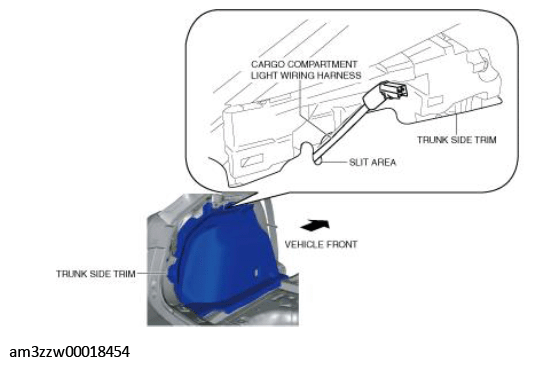

- If the cargo compartment light wiring harness is routed incorrectly, the trunk side upper trim will interfere with the cargo compartment light wiring harness when installing the trunk side upper trim which could damage the cargo compartment light wiring harness. When routing the cargo compartment light wiring harness, route it through the slit area shown in the figure. (LH only)
