Sedan (4SD)

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the following parts:
    1. Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION .)
    2. Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION .)
    3. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
  2. Remove the fasteners in the order of (1), (2) and (3) shown in the figure.

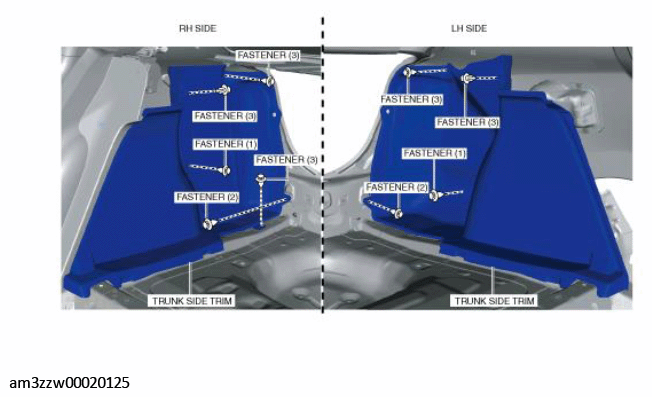

    Fig 1: Removing Trunk Lid Trim Fasteners - (Sedan (4SD))
    G11449410Courtesy of MAZDA MOTORS CORP.
  3. Move the trunk side trim in the direction of the arrows shown in the figure, and remove the trunk side trim while setting the tire house trim aside.

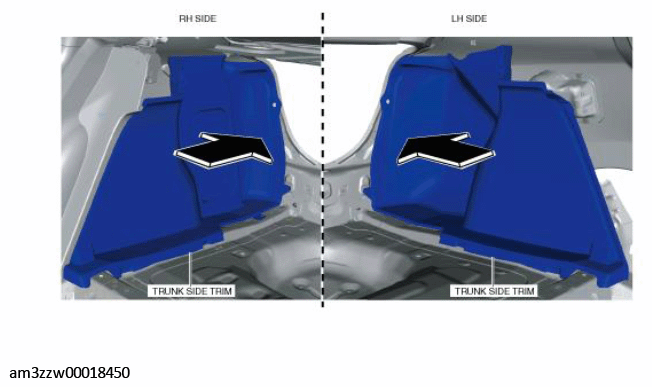

    Fig 2: Moving Trunk Side Trim
    G11449411Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
