Hatchback (5HB)

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the trunk covering. (See TRUNK COVERING REMOVAL/INSTALLATION .)
  2. Remove the lock bezel in the direction of the arrow (1) shown in the figure while detaching the tabs.

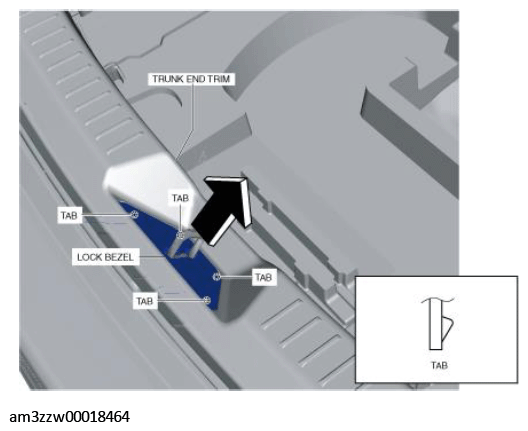

    Fig 1: Removing Lock Bezel - (Hatchback (5HB))
    G11449405Courtesy of MAZDA MOTORS CORP.
  3. Partially peel back the seaming welt.
  4. Remove the fasteners.

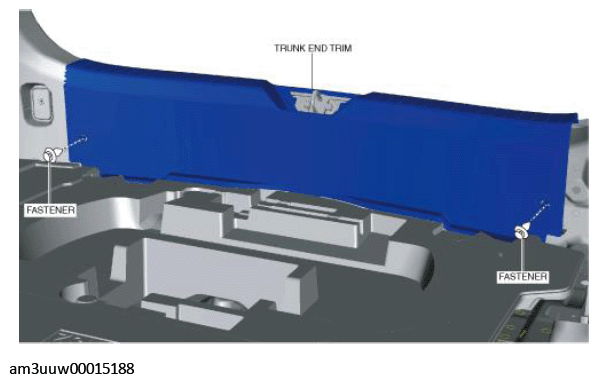

    Fig 2: Removing Fasteners - (Hatchback (5HB))
    G11449406Courtesy of MAZDA MOTORS CORP.
  5. Pull the trunk end trim in the direction of the arrow in the order of (1), (2) shown in the figure while detaching the hooks, clips A, pins A, clips B, pins B and guides.

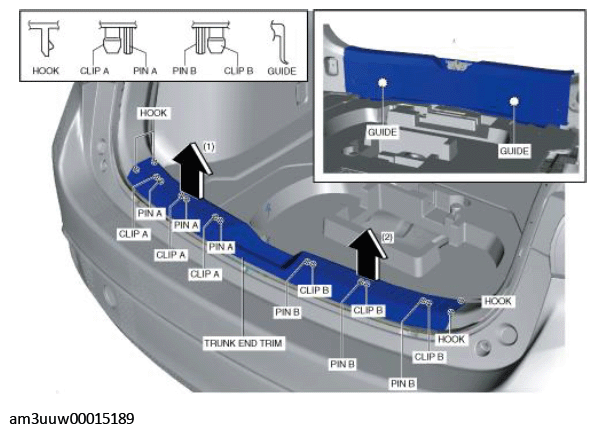

    Fig 3: Pulling Trunk End Trim - (Hatchback (5HB))
    G11449407Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
