Sedan (4SD)

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the trunk covering. (See TRUNK COVERING REMOVAL/INSTALLATION .)
  2. Remove trunk board in the direction of the arrow shown in the figure.

    With Temporary Spare Tire

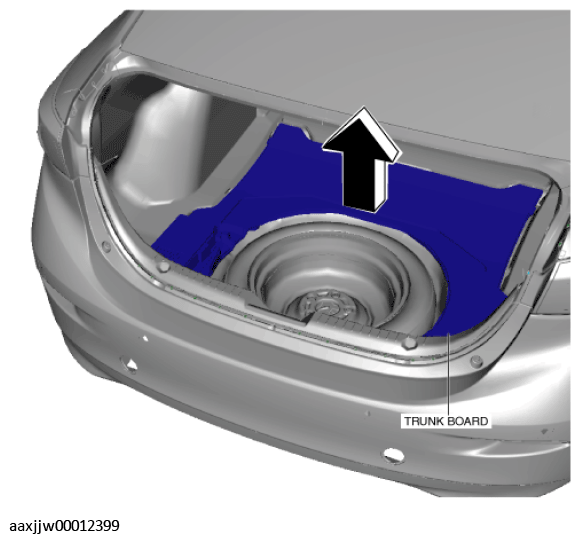

    Fig 1: Removing Trunk Board With Temporary Spare Tire - (Sedan (4SD))
    G11449396Courtesy of MAZDA MOTORS CORP.

    Without Temporary Spare Tire

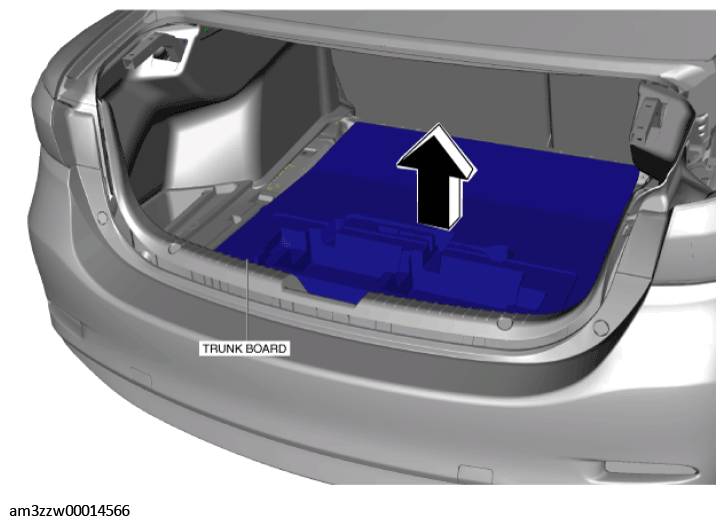

    Fig 2: Removing Trunk Board Without Temporary Spare Tire - (Sedan (4SD))
    G11449397Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
