Side Wall Removal/Installation: LH

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Pull the side wall in the direction of the arrow in the order of (1), (2) and remove it while detaching the hooks and clip.
CAUTION:
- If the hooks and clip are removed forcefully, guide may be damaged. Carefully remove the hooks and clip so as not to damage the guide.

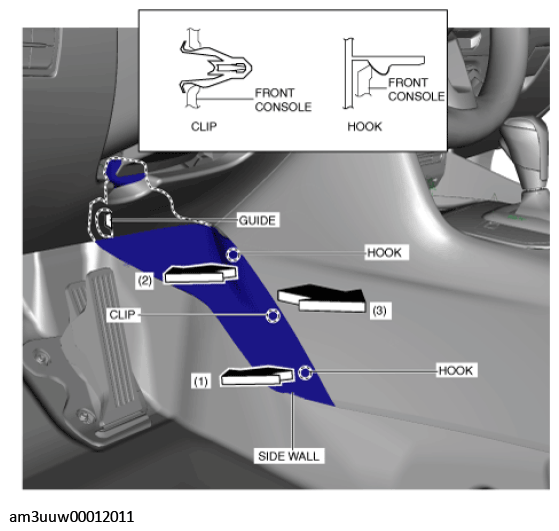

Fig 1: Detaching Side Wall Hooks And Clip - LH
Courtesy of MAZDA MOTORS CORP.
Pull the side wall in the direction of the arrow (3) and remove it while detaching the guide.
Install in the reverse order of removal.
