Without Electric Parking Brake: MTX

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the upper panel. (See UPPER PANEL REMOVAL .) (See UPPER PANEL INSTALLATION .)
Remove the shift lever knob. (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R] .)

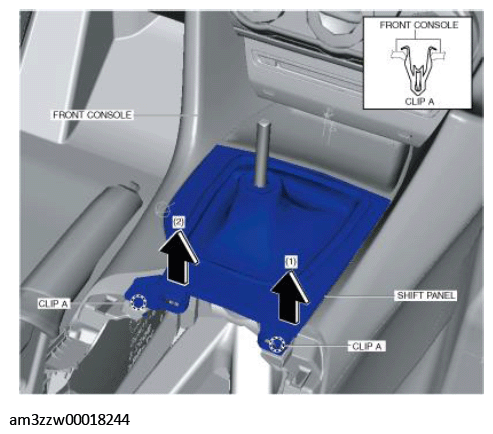

Move the shift panel in the order of the arrows (1) and (2) shown in the figure, and remove the clips A.

Fig 1: Moving Shift Panel With Upper Panel
Courtesy of MAZDA MOTORS CORP.

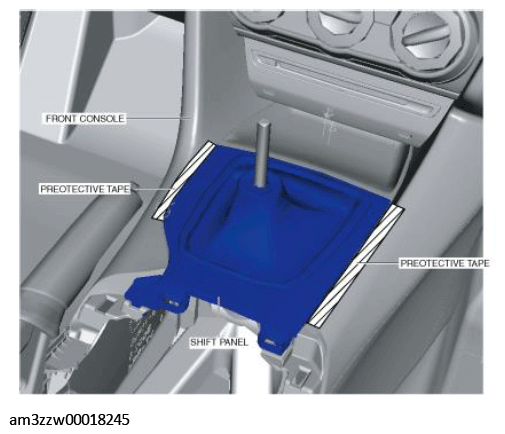

To prevent scratches or damage, affix protective tape to the position shown in the figure of the front console.

Fig 2: Affixing Protective Tape
Courtesy of MAZDA MOTORS CORP.

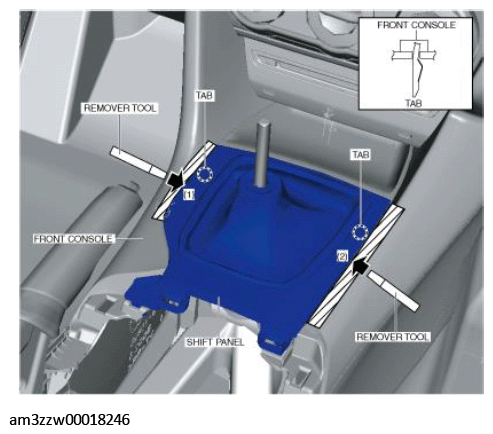

Insert the remover tool in the order of the arrows (1) and (2) shown in the figure, and detach the tabs of the shift panel from the front console.

Fig 3: Detaching Tabs Of Shift Panel From Front Console
Courtesy of MAZDA MOTORS CORP.

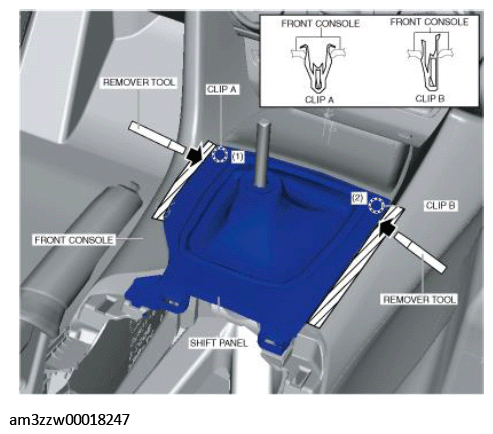

Insert the remover tool in the order of the arrows (1) and (2) shown in the figure, and detach the clip A and clip B of the shift panel from the front console.

Fig 4: Disconnecting Clip A And B Of Shift Panel From Front Console
Courtesy of MAZDA MOTORS CORP.

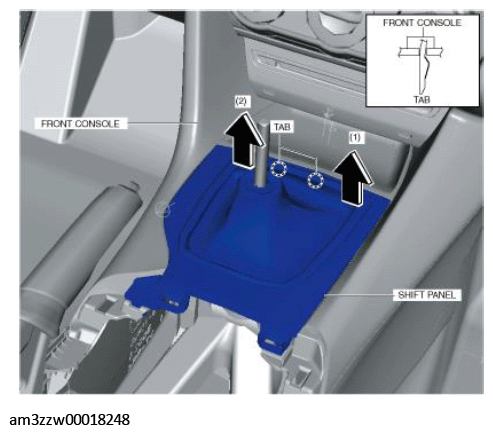

Move the shift panel in the order of arrows (1) and (2) shown in the figure, and remove it while detaching the shift panel tabs from the front console.

Fig 5: Detaching Shift Panel Tabs From Front Console
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
