With Electric Parking Brake: MTX

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the upper panel. (See UPPER PANEL REMOVAL .) (See UPPER PANEL INSTALLATION .)
  3. Remove the shift lever knob. (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R] .)
  4. Move the shift panel in the direction of the arrows in the order of (1) and (2) while detaching the hooks A, hooks B and hook C.

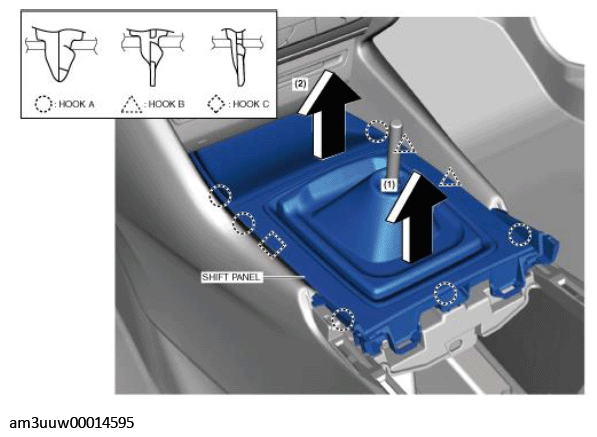

    Fig 1: Moving Shift Panel With Hooks
    G11449369Courtesy of MAZDA MOTORS CORP.
  5. Remove the shift panel in the direction of the arrow shown in the figure while detaching the guides.

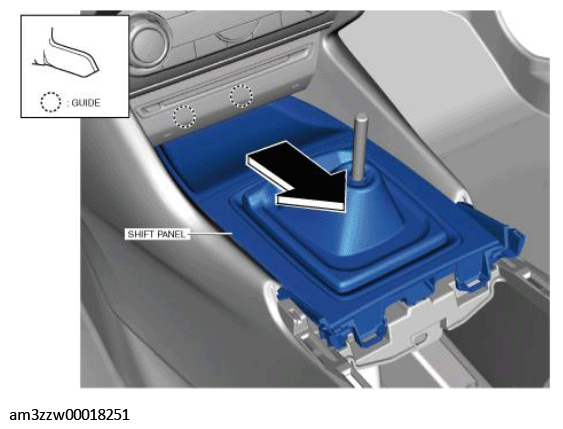

    Fig 2: Removing Shift Panel With Guide
    G11449370Courtesy of MAZDA MOTORS CORP.
  6. While pressing the tabs in the directions of the arrow (1) shown in the figure, press up the tabs in the direction of the arrow (2) and detach the tabs from the front console box.

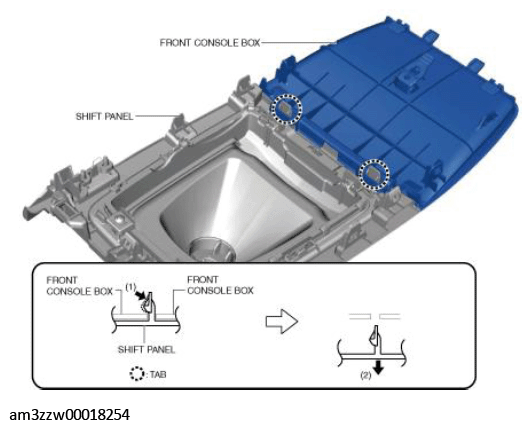

    Fig 3: Pressing Tabs From Front Console Box
    G11449371Courtesy of MAZDA MOTORS CORP.
  7. Install in the reverse order of removal.
