With Electric Parking Brake: ATX

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the upper panel. (See UPPER PANEL REMOVAL .) (See UPPER PANEL INSTALLATION .)
  3. Remove the selector lever knob. (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)

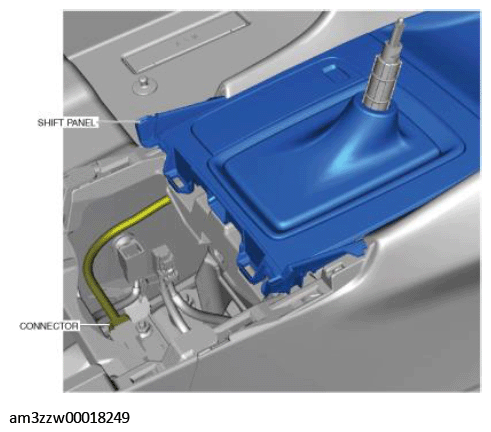

  4. Disconnect the connector.
    Fig 1: Removing Upper Panel
    G11449365Courtesy of MAZDA MOTORS CORP.

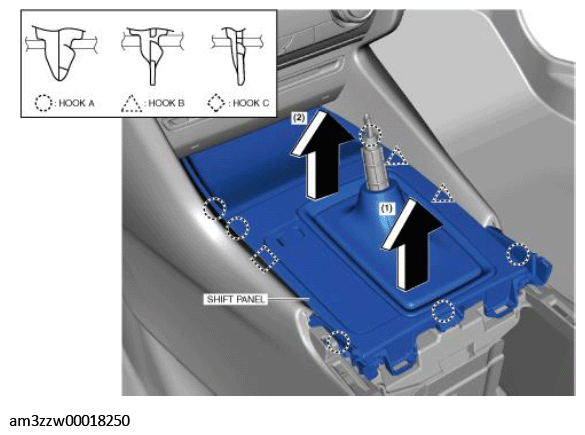

  5. Move the shift panel in the direction of the arrows in the order of (1) and (2) while detaching the hooks A, hooks B and hook C.
    Fig 2: Moving Shift Panel
    G11449366Courtesy of MAZDA MOTORS CORP.

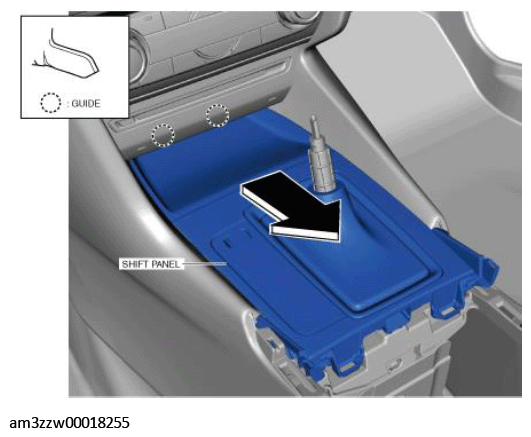

  6. Remove the shift panel in the direction of the arrow shown in the figure while detaching the guides.
    Fig 3: Removing Shift Panel With Guide
    G11449367Courtesy of MAZDA MOTORS CORP.

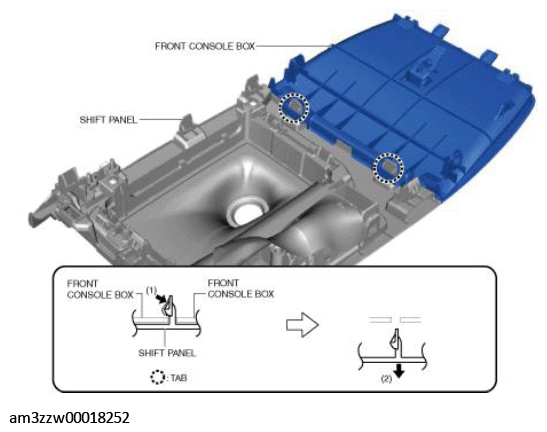

  7. While pressing the tabs in the directions of the arrow (1) shown in the figure, press up the tabs in the direction of the arrow (2) and detach the tabs from the front console box.
    Fig 4: Front Console Box Tabs Location
    G11449368Courtesy of MAZDA MOTORS CORP.
  8. Install in the reverse order of removal.
