With Electric Parking Brake

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. To prevent scratches or damage, affix protective tape to the position shown in the figure of the dashboard.
    CAUTION:
    • If work using protective tape is performed in an area where the temperature can increase drastically or the protective tape is left adhered for a long period of time, tape adhesive could remain area where the protective tape was applied when the it is peeled off. When applying protective tape, avoid areas where the temperature of the tape can increase drastically and peel off the protective tape soon after the work is completed.

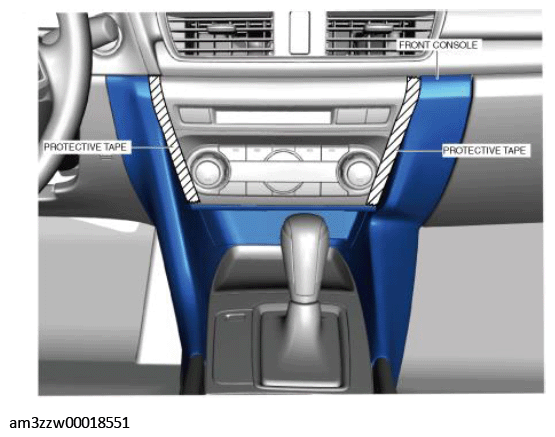

    Fig 1: Affixing Protective Tape To Dashboard Position
    G11449261Courtesy of MAZDA MOTORS CORP.
  3. Shift the selector lever from the P position to the D position (ATX).
  4. Remove the following parts:
    1. Upper panel (See UPPER PANEL REMOVAL .) (See UPPER PANEL INSTALLATION .)
    2. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION .)
    3. Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R] .)
    4. Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    5. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    6. CD player (with CD player) (See CD PLAYER REMOVAL .) (See CD PLAYER INSTALLATION .)
    7. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
    8. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    9. Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
  5. Detach the wiring harness clips.

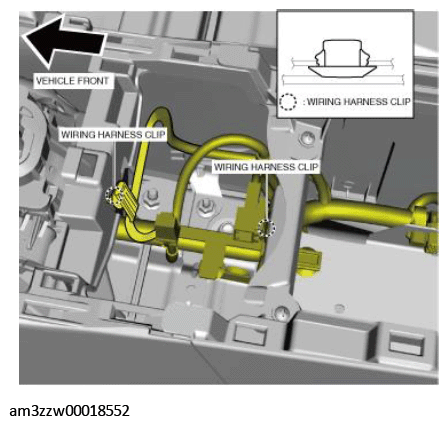

    Fig 2: Detaching Wiring Harness Clips
    G11449262Courtesy of MAZDA MOTORS CORP.
  6. Remove the fasteners.

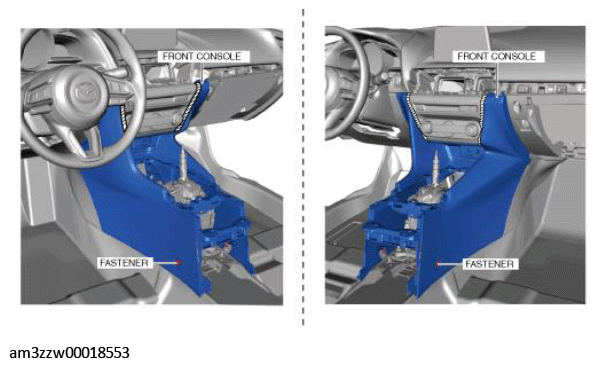

    Fig 3: Removing Fasteners
    G11449263Courtesy of MAZDA MOTORS CORP.
  7. Hold the shaded area shown in the figure, move the front console in the order of the arrows (1), (2), (3), and detach the clips A and clips B from the dashboard.

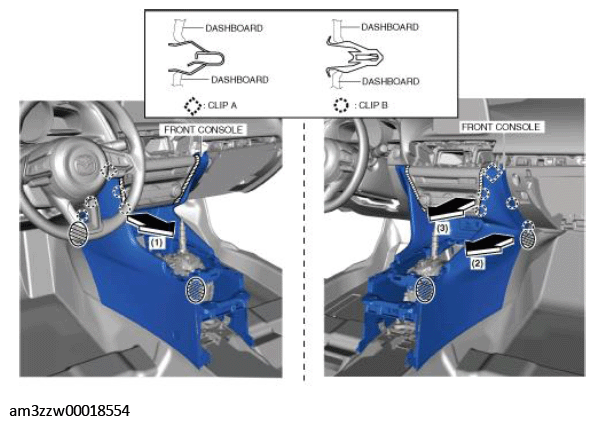

    Fig 4: Detaching Clips A And Clips B From Dashboard
    G11449264Courtesy of MAZDA MOTORS CORP.
  8. Disconnect the SD card slot hub connector. (without CD player)
  9. Move the front console in the direction of the arrow shown in the figure and remove it while avoiding contact with the shift lever (MTX)/selector lever (ATX).

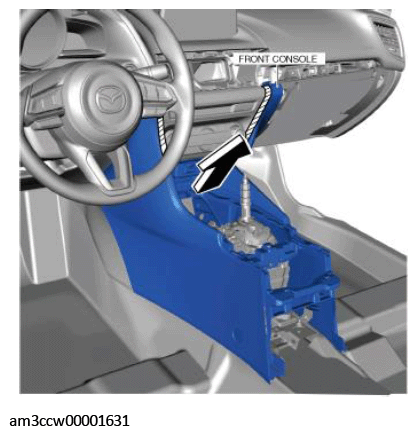

    Fig 5: Moving Front Console
    G11449265Courtesy of MAZDA MOTORS CORP.
  10. Install in the reverse order of removal.
