Without Electric Parking Brake

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Upper panel (See UPPER PANEL REMOVAL .) (See UPPER PANEL INSTALLATION .)
    2. Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    3. Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R] .)
    4. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
  3. Insert a remover tool in the position indicated by the arrow in the figure and detach the clip.

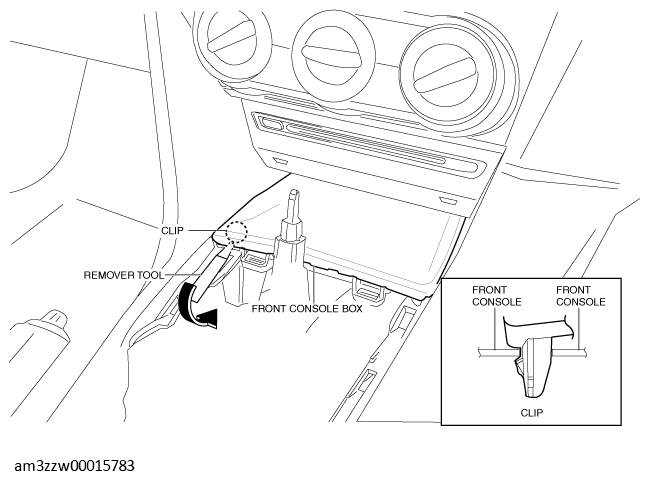

    Fig 1: Inserting Remover Tool
    G11449253Courtesy of MAZDA MOTORS CORP.
  4. Insert a remover tool in the position indicated by the arrow in the figure and detach the clip.

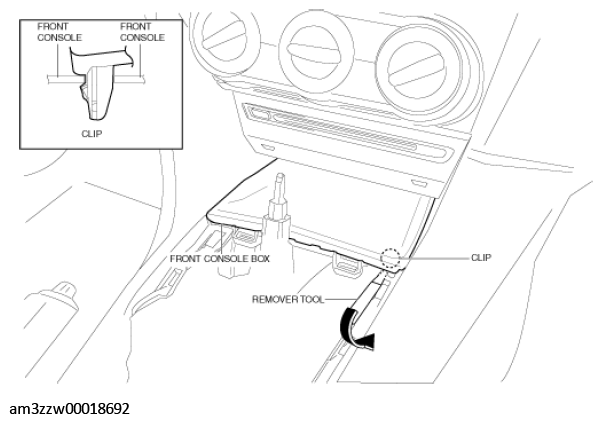

    Fig 2: Detaching Clip
    G11449254Courtesy of MAZDA MOTORS CORP.
  5. Remove the front console box in the direction of the arrow shown in the figure while detaching the guides.

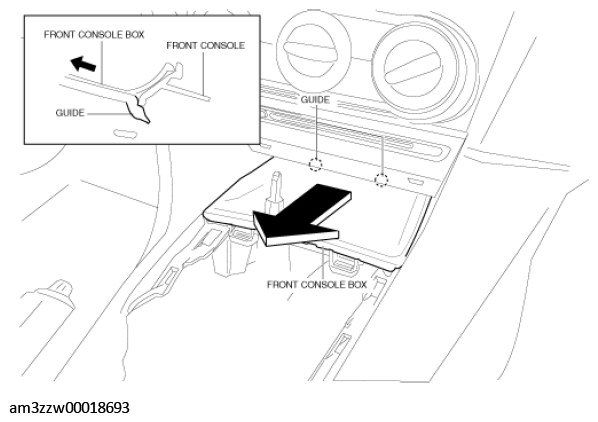

    Fig 3: Removing Front Console Box
    G11449255Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
