Without electric parking brake

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The console lid lock is integrated with the console lid inner.
When replacing the console lid lock, replace it with the console lid inner as a single unit.

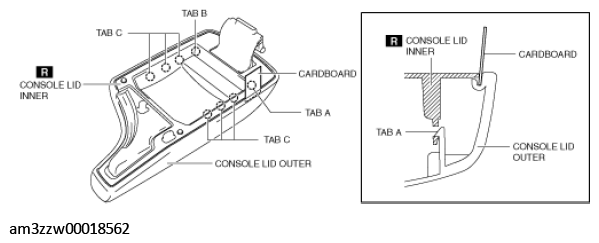

Insert a cardboard into the position shown in the figure.

Fig 1: Inserting Cardboard - Without Electric Parking Brake
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- The surface of the console lid may be scratched if a tool is inserted without inserting cardboard. Always insert cardboard before inserting a tool to protect the surface of the console lid.

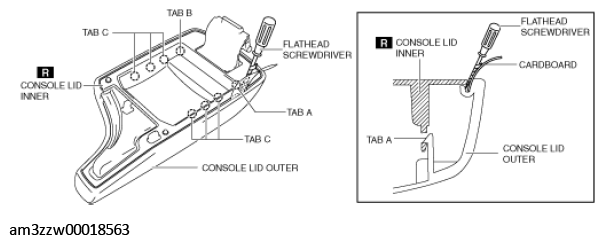

Insert a tape-wrapped flathead screwdriver to the position shown in the figure and secure a clearance for inserting the remover tool.

Fig 2: Inserting Tape-Wrapped Flathead Screwdriver
Courtesy of MAZDA MOTORS CORP.

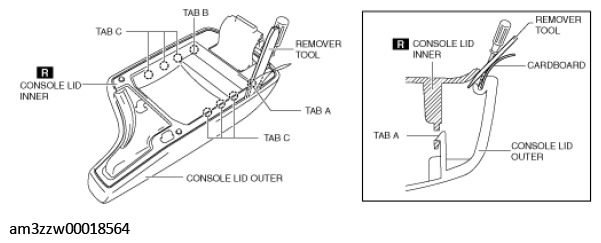

Insert the remover tool into the clearance secured in Step 2.

Fig 3: Inserting Remover Tool
Courtesy of MAZDA MOTORS CORP.

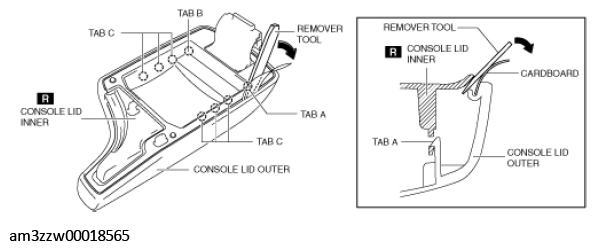

Move the remover tool in the direction of the arrow shown in the figure and detach the tab A of the console lid outer from the console lid inner.

Fig 4: Moving Remover Tool
Courtesy of MAZDA MOTORS CORP.

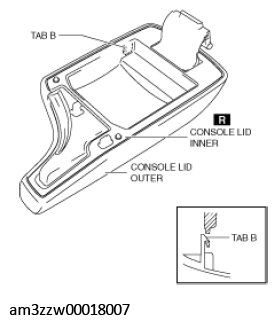

Perform Steps 1 to 4 for the opposite side and detach the tab B of the console lid outer from the console lid inner.

Fig 5: Detaching Tab B Of Console Lid Outer From Console Lid Inner
Courtesy of MAZDA MOTORS CORP.

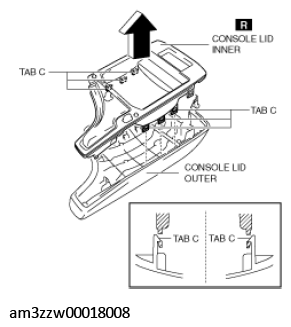

Pull the console lid inner in the direction of the arrow shown in the figure and detach all the tabs C of the console lid outer from the console lid inner.

Fig 6: Pulling Console Lid Inner
Courtesy of MAZDA MOTORS CORP.
Remove the console lid inner.
Install in the reverse order of removal.
