Assist Handle Removal/Installation: Removal

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Insert a remover tool into the service hole and remove the assist handle covers.

Fig 1: Removing Assist Handle Cover
Courtesy of MAZDA MOTORS CORP.

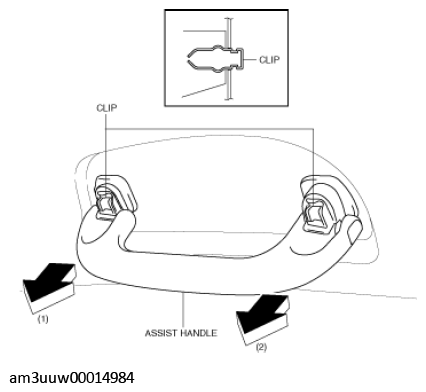

Remove the assist handle in the direction of the arrows (1) and (2), while detaching the clips.

Fig 2: Detaching Clips

Courtesy of MAZDA MOTORS CORP.

NOTE:

Remove the assist handle by shaking it up and down.
