Assist Handle Removal/Installation: Installation
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

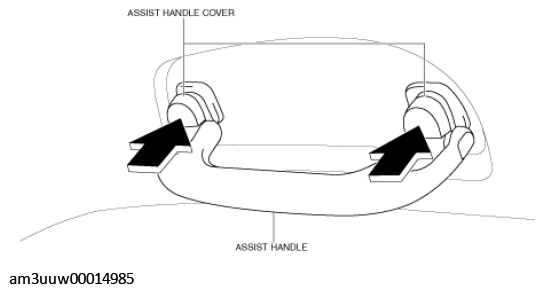

- Push the assist handle in the direction of the arrows shown in the figure.
Courtesy of MAZDA MOTORS CORP.
- Push the assist handle cover assembled to install the assist handle.
Courtesy of MAZDA MOTORS CORP.
