Section 12 (Symptom Troubleshooting - Restraints)
>>
Air Bag System Wiring Diagram (Symptom Troubleshooting)
>>
Standard Deployment Control System
Standard Deployment Control System
WARNING:
This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

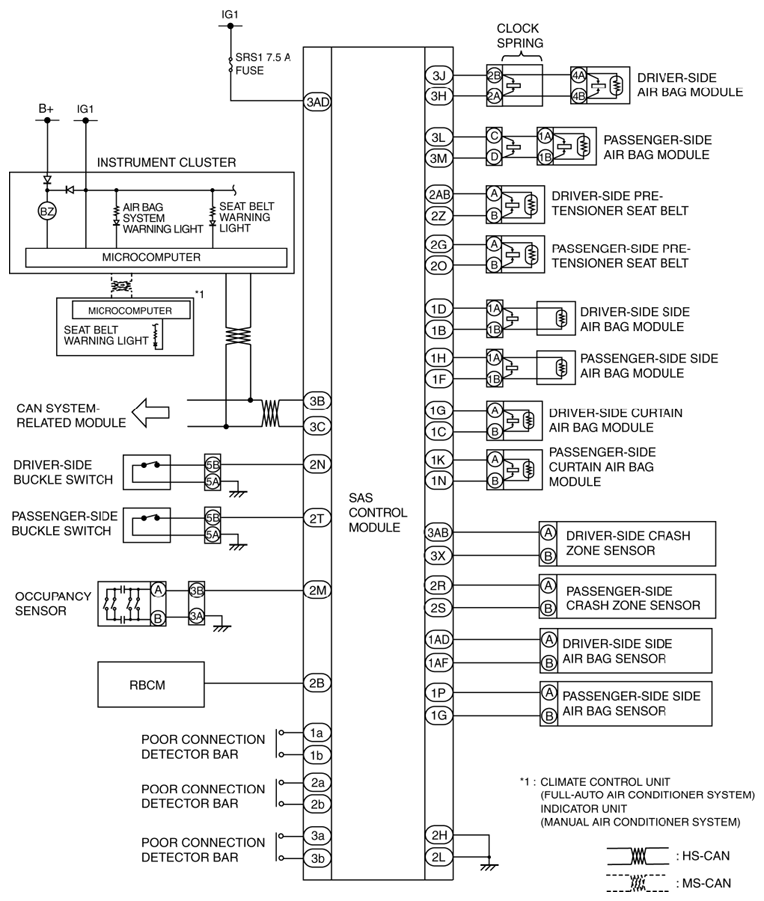

Fig 1: Air Bag System Wiring Diagram - Standard Deployment Control System
Courtesy of MAZDA MOTORS CORP.

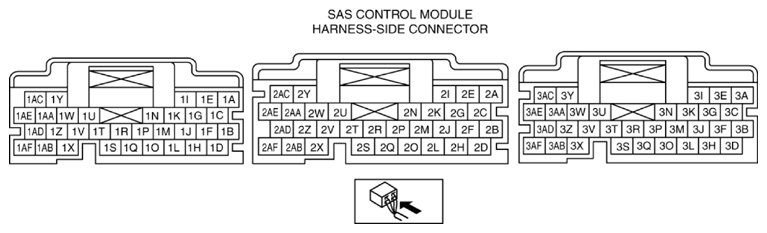

Fig 2: Identifying SAS Control Module Connector Terminals - Standard Deployment Control System
Courtesy of MAZDA MOTORS CORP.
