Airflow Mode Actuator Removal/Installation (Auto A/C): Installation

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Install the brackets.

Fig 1: Removing Airflow Mode Actuator Brackets
Courtesy of MAZDA MOTORS CORP.
Align the airflow mode main link and the airflow mode sub link projection as shown in the figure.

Fig 2: Aligning Airflow Mode Main Link And Airflow Mode Sub Link Projection
Courtesy of MAZDA MOTORS CORP.
When lightly pressing the airflow main link to rotate it in the direction of the arrow, verify that the airflow mode door switches to the position for each mode.

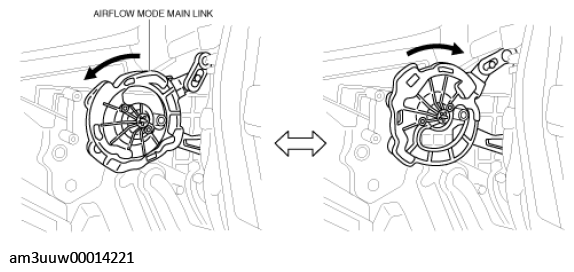

Fig 3: Rotating Airflow Main Link
Courtesy of MAZDA MOTORS CORP.
Align the airflow mode main link installation hole with the shape of the airflow mode actuator shaft, and install while holding the airflow mode main link.

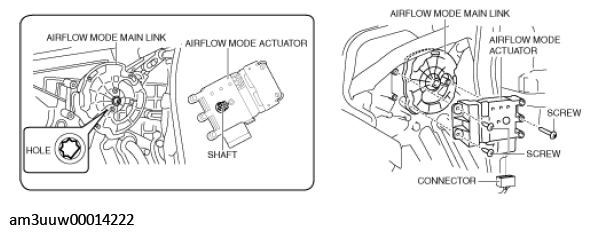

Fig 4: Aligning Airflow Mode Main Link Installation Hole
Courtesy of MAZDA MOTORS CORP.
Install the airflow mode actuator.
Install the screws.
Connect the airflow mode actuator connector.
Install the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
