HS-CAN signal waveform

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

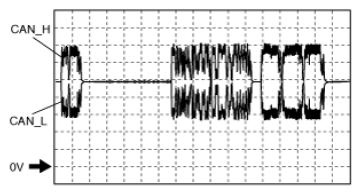

CAN circuit condition Signal waveform (reference)
Normal
G11529434
  • CAN_H
    • Connection terminal: DLC-2: terminal F (+) ↔ body ground (-)
      • Oscilloscope setting: 0.5 V/DIV (Y), 200 μs/DIV (X), DC range
  • CAN_L
    • Connection terminal: DLC-2: terminal E (+) ↔ Body ground (-)
      • Oscilloscope setting: 0.5 V/DIV (Y), 200 μs/DIV (X), DC range
