Instrumentation/Driver Info. Location Index: Exterior

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

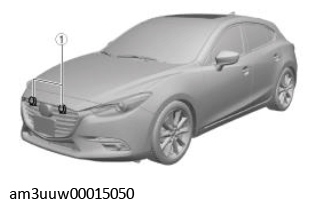

Fig 1: Instrumentation/Driver Information Location (Exterior)
G11564823Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 Horn
(See HORN REMOVAL/INSTALLATION .)
(See HORN INSPECTION .)
