Using instrument cluster
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

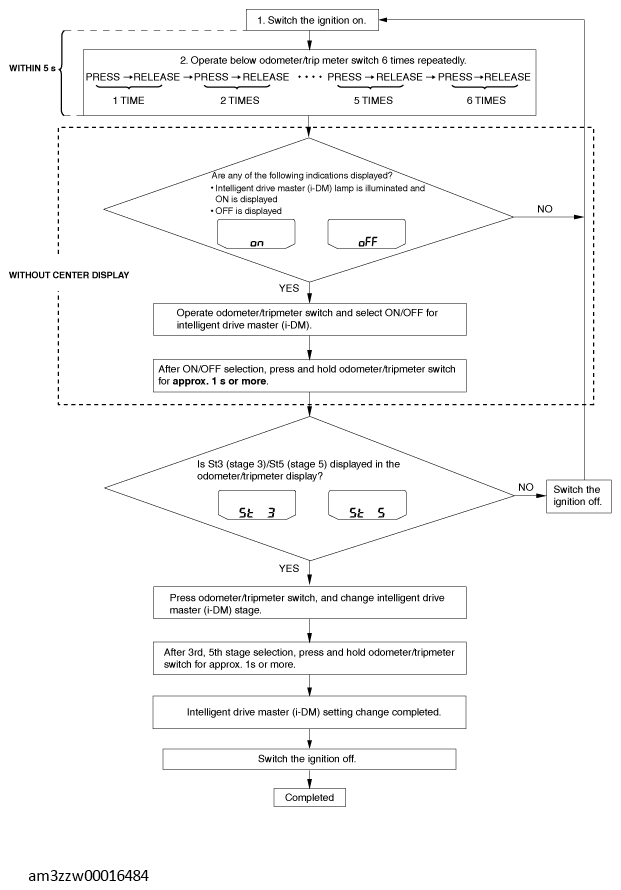

Display/non-display switching and number of stages switching
- Switch using the following procedure:
| Indication on LCD | Function | Initial setting | Setting contents | Control unit | ||
|---|---|---|---|---|---|---|
| on/oFF(1) | Display/non-display of the Intelligent Drive Master (i-DM) screen can be switched. | ON | ON/OFF | Instrument cluster | ||
| St 3/St 5 | The number of stages the Intelligent Drive Master (i-DM) can be switched. | St 3 | St 3/St 5 | Instrument cluster | ||
|
||||||
