Fuel Gauge/LCD Inspection

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the M-MDS to the DLC-2.
  2. After vehicle identification, select the following from the M-MDS initialization screen.
    1. "Data logger"
    2. "Module"
    3. "IC"
  3. Using the simulation function LCD_SEG, verify that the LCD is illuminated.

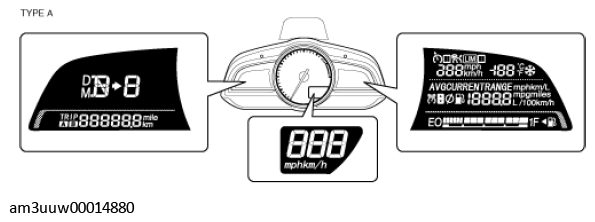

    Fig 1: Inspecting Instrument Cluster-Type A
    G11564713Courtesy of MAZDA MOTORS CORP.

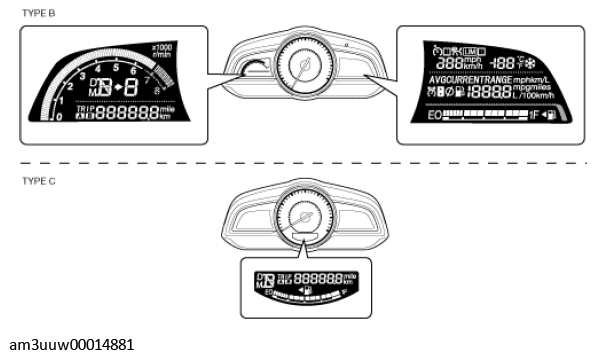

    Fig 2: Inspecting Instrument Cluster-Type B And C
    G11564714Courtesy of MAZDA MOTORS CORP.
