On-Board Diagnostic Wiring Diagram Instrument Cluster

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

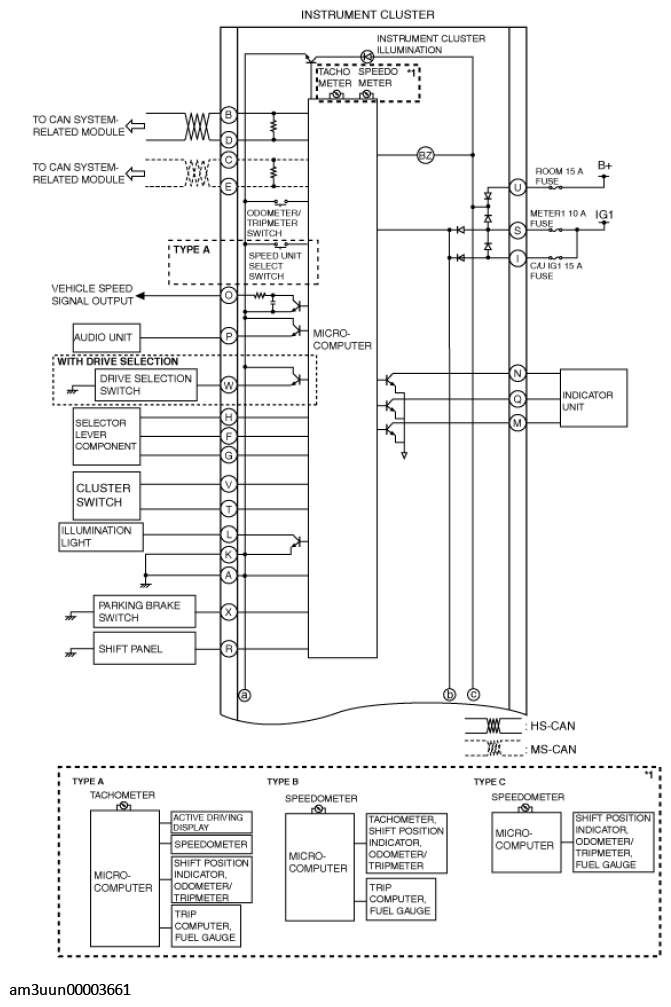

Fig 1: Instrument Cluster - On Board Diagnostic Circuit Diagram (1 Of 4)

Courtesy of MAZDA MOTORS CORP.

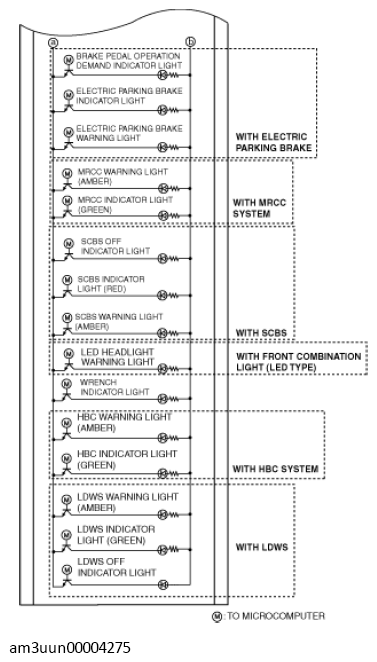

Fig 2: Instrument Cluster - On Board Diagnostic Circuit Diagram (2 Of 4)

Courtesy of MAZDA MOTORS CORP.

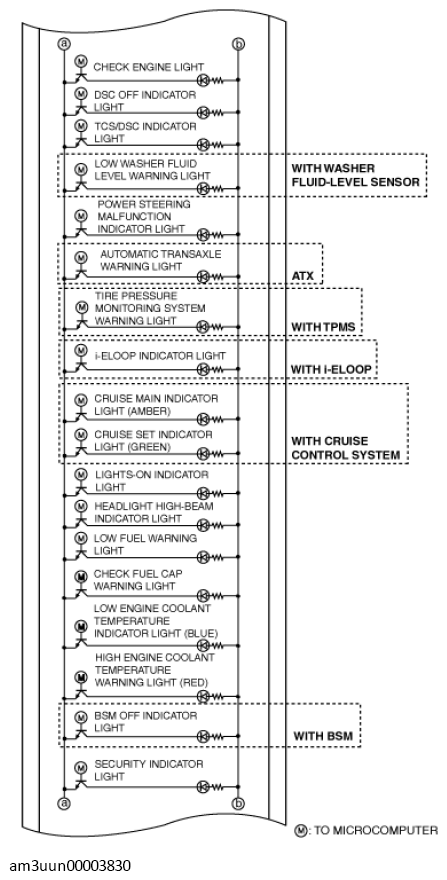

Fig 3: Instrument Cluster - On Board Diagnostic Circuit Diagram (3 Of 4)

Courtesy of MAZDA MOTORS CORP.

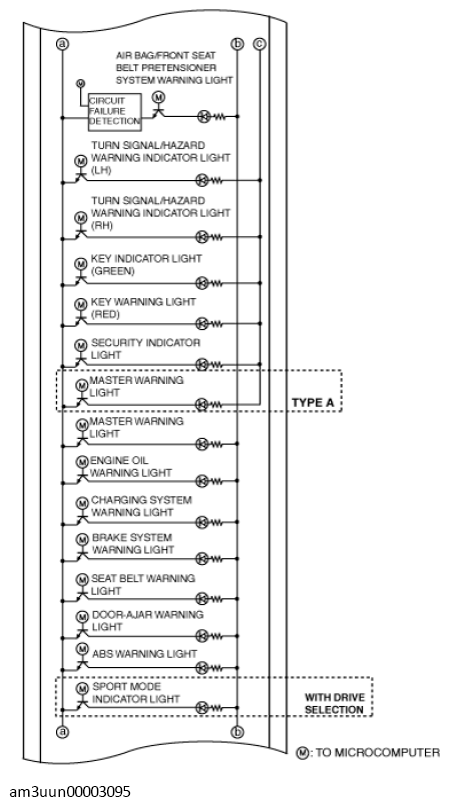

Fig 4: Instrument Cluster - On Board Diagnostic Circuit Diagram (4 Of 4)

Courtesy of MAZDA MOTORS CORP.
