DTC U2105-02; Drive Selection Switch Circuit Malfunction: Notes
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
DETECTION CONDITION & POSSIBLE CAUSE
| Description |
Drive selection switch circuit malfunction |
| Detection condition |
- Instrument cluster detects an open circuit in the drive selection switch circuit for 5 s or more with the ignition switched ON (engine off or on).
|
| Fail-safe function |
Not applicable |
| Possible cause |
- Drive selection switch connector or terminal malfunction

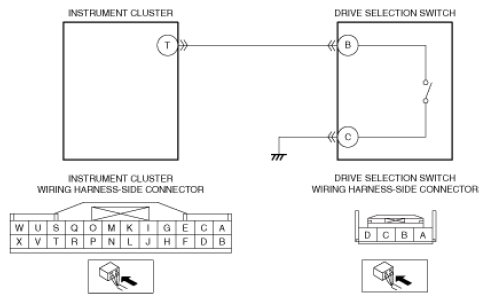

- Open circuit in wiring harness between drive selection switch terminal C and body ground
- Instrument cluster connector or terminal malfunction
- Open circuit in wiring harness between Instrument cluster terminal T and drive selection switch terminal B
- Drive selection switch malfunction
- Instrument cluster malfunction
|
|
|
