DTC U2013-13; Cluster Switch Circuit Malfunction: Notes
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
DETECTION CONDITION & POSSIBLE CAUSE
| Description |
Cluster switch circuit malfunction |
| Detection condition |
- Instrument cluster detects an open circuit in the cluster switch circuit for 5 s or more with the ignition switched ON (engine off or on).
|
| Fail-safe function |
Not applicable |
| Possible cause |
- Cluster switch connector or terminal malfunction
- Instrument cluster connector or terminal malfunction

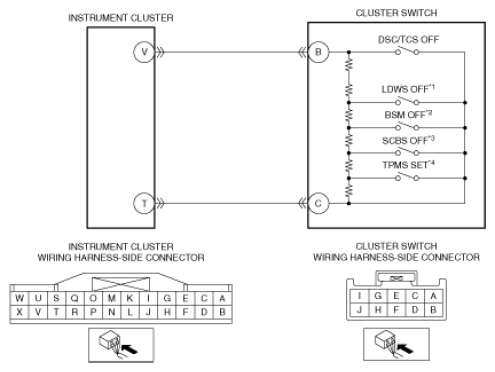

- Open circuit in wiring harness between the following terminals:
- Instrument cluster terminal V-Cluster switch terminal B
- Instrument cluster terminal T-Cluster switch terminal C
- Cluster switch malfunction
- Instrument cluster malfunction
|
|
|
